A water motor pump is an electrically driven device that moves water from a source to a delivery point using mechanical energy. In Saudi Arabia, reliable pump selection is critical for buildings, irrigation, and large-scale construction. This guide covers everything contractors, engineers, and procurement teams need to know - from pump types and technical specifications to current pricing in KSA and how to choose the right unit for your project. El Buroj supplies the full range of water pumps in Saudi Arabia with wholesale pricing, bulk supply capability, and fast delivery nationwide.
What is a Water Motor Pump?
A water motor pump combines an electric motor with a pump mechanism to draw, pressurize, and transport water through piping networks. The motor converts electrical energy into rotational force, which drives an impeller or rotor - displacing water and generating continuous flow under controlled pressure.
In MEP and construction applications across the Kingdom, the electric motor pump is the core component of water supply systems, from residential villas in Riyadh to industrial complexes and mega-developments in Jeddah and beyond. See El-Buroj's Plumbing Products.
How a Water Motor Pump Works
- The motor energizes the impeller (centrifugal designs) or pistons/diaphragms (positive displacement designs)
- Water enters through the suction port, gains kinetic energy from the rotating impeller, and exits the discharge port under pressure
- Key performance parameters - flow rate (m³/hr), pressure head (meters), horsepower (HP), and voltage (220V or 380V) - determine suitability for a given application
Water Motor Pump vs. Other Pump Types
- vs. Manual pump: Motor-driven pumps deliver continuous, automated flow without operator effort - essential for buildings with constant demand
- vs. Gravity-fed systems: Electric motor pumps can supply water to elevated floors and long horizontal runs where gravity is insufficient
- vs. Pneumatic pump: Electric motor pumps are more energy efficient and integrate directly into standard MEP electrical infrastructure
Types of Water Motor Pumps Available in Saudi Arabia

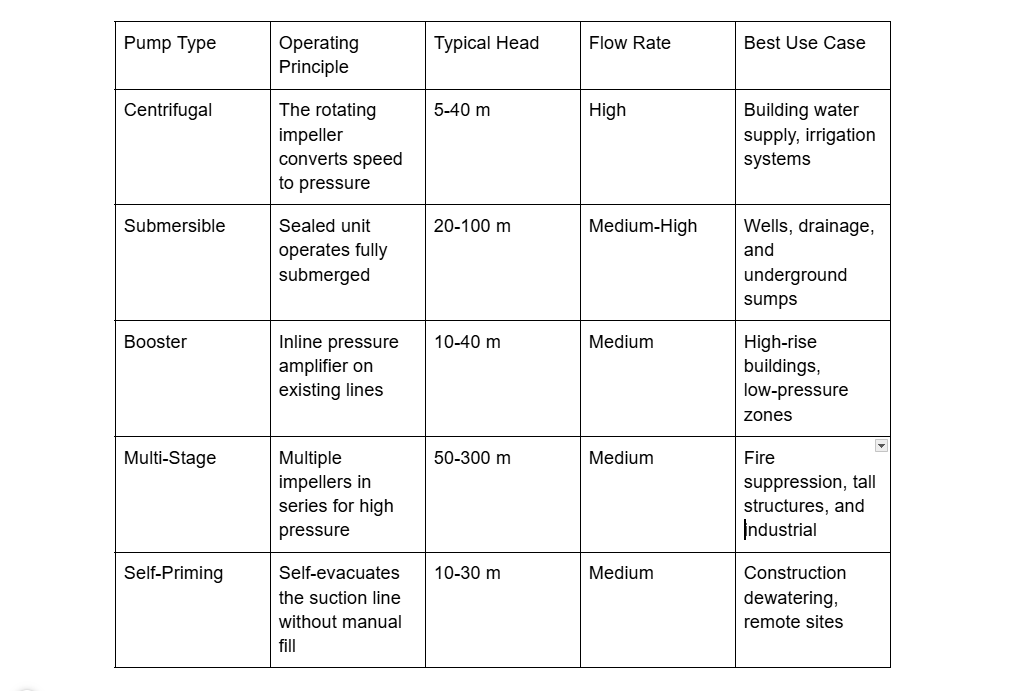

Different project types demand different pump configurations. The table below summarizes the main categories available from El Buroj, followed by technical details on each type.
1. Centrifugal Pump
The most widely deployed pump type in building services and water supply systems. A rotating impeller converts motor speed into flow, making it highly efficient for clean water distribution at low to medium pressure. Available in single-stage and multi-stage configurations to match varying head requirements.
2. Submersible Pump
Installed fully submerged in the water source - wells, sumps, or underground storage tanks. Motor and pump are sealed inside a single waterproof unit. Operates quietly and is the standard choice for deep well extraction and underground drainage applications in Saudi Arabia. View submersible pump options at El-Buroj.
3. Booster Pump
Designed specifically to increase water pressure in existing supply lines. Common in high-rise buildings in Jeddah and Riyadh, where municipal supply pressure is insufficient to reach upper floors. Typically installed in parallel with a pressure tank for stable, consistent output.
4. Multi-Stage Pump
Multiple impellers in series achieve very high pressure head outputs. Used in fire suppression systems, tall towers, water treatment facilities, and applications where a single-stage unit cannot meet the required head. These pumps comply with Saudi Civil Defense pressure requirements for fire systems.
5. Self-Priming Pump
Capable of drawing water from below the pump level without manual priming before each use. Preferred for construction site dewatering, temporary installations, and remote locations where pump positioning relative to the water source cannot always be optimized.
Common Applications for Water Motors in Projects
1. Building Water Supply Systems
In residential towers and commercial buildings, electric motor pumps maintain constant pressure throughout the distribution network. Multi-story developments require booster pumps calibrated to deliver a minimum of 1.5-2.5 bar at the highest floor. El Buroj supplies complete pump-and-panel packages for this application.
2. Irrigation Systems
Agricultural and landscaping applications across Saudi Arabia rely on centrifugal and submersible pumps to distribute water over large areas. Flow rate requirements range from 5 m³/hr for small plots to over 200 m³/hr for large-scale irrigation systems serving farms and green developments.
3. Construction Site Dewatering
Excavation pits and foundation works require continuous dewatering during active construction phases. Self-priming and submersible pumps handle muddy, debris-laden water and are a standard requirement for below-grade construction across Saudi Arabia's major cities. See also:
El-Buroj Plumbing & Electrical Installation Guide
4. HVAC and Cooling Tower Systems
Chiller systems and cooling towers in large MEP installations use centrifugal pumps to circulate conditioned water through air handling units and heat exchangers. High ambient temperatures in the Kingdom make pump reliability and thermal tolerance critical selection criteria.
5. Fire Suppression
High-pressure multi-stage pumps are a mandatory component of fire suppression systems under Saudi Civil Defense regulations. Minimum flow and pressure outputs are specified in fire engineering drawings and must be verified through pump performance curves at the design stage.
6. Industrial and Process Applications
Factories, water treatment plants, and desalination auxiliary systems across the Kingdom deploy large-capacity pumps rated for continuous 24/7 operation. Three-phase 380V IE3 motors are recommended for this duty class.
Get the Best Price for Water Motor Pumps Today
Request a customized quotation based on your project needs with competitive rates across KSA.
Tel: 920031298
Top-Rated Water Motor Pump Brands in Saudi Arabia
Choosing the right brand is as important as choosing the right pump type. El-Buroj gives contractors, engineers, and procurement teams access to a wide selection of trusted international brands - so you can specify the right fit for your project's budget, application, and technical requirements. Below are the most widely used water motor pump brands in Saudi Arabia.
- Grundfos (Denmark)
The dominant brand in the KSA market. Covers submersible, booster, centrifugal, and HVAC circulation pumps across all project sizes. Strong local service network and spare parts availability throughout the Kingdom.
- Pedrollo (Italy)
Among the most popular brands in Saudi residential and commercial projects. Reliable centrifugal and submersible units at competitive price points - a go-to choice for contractors managing tight project budgets.
- Lowara (Italy)
Preferred for commercial building services and irrigation systems. Known for energy-efficient multi-stage and centrifugal configurations with low lifecycle operating costs.
- KSB (Germany)
Heavy-duty end-suction and submersible pumps for industrial, infrastructure, and water treatment applications. Widely specified for large-scale developments and process plants across KSA.
- Ebara (Japan)
Over 100 years in the pump industry. Strong track record in drainage, dewatering, and clean water supply. Reliable performance in demanding Saudi construction and industrial environments.
- DAB (Italy)
Compact booster sets and surface pumps are commonly used in villas, small buildings, and light commercial applications. Easy to install and widely stocked in the Saudi market.
- Wilo (Germany)
Widely specified in large MEP and HVAC projects for pressure-boosting and circulation systems. High efficiency ratings make Wilo a strong choice where energy consumption is a design consideration.
- Calpeda (Italy)
A broad range of centrifugal and submersible pumps covering residential, commercial, and light industrial use. Growing presence and availability in Saudi Arabia.
- Norica
Entry-level domestic pumps available in the local Saudi market. Suitable for light residential applications where budget is the primary constraint.
When evaluating brands for KSA projects, key selection criteria include:
- IP rating: IP55 minimum for outdoor or wet environments; IP68 for fully submerged submersible units
- Material: stainless steel pump bodies (AISI 304 or 316) for corrosive environments, cast iron for indoor clean-water service
- Motor efficiency class: IE2 or IE3 motors deliver significantly lower operating costs over the pump lifecycle - critical in Saudi Arabia's high-runtime, high-temperature conditions
- Local service availability: Ensure spare parts and authorized service exist within the Kingdom before specifying a brand
Water Motor Pump Pricing and Models from El Buroj
Pricing for water pumps in Saudi Arabia varies by type, capacity, material, and brand. The tables below provide estimated market ranges and standard technical specifications for common configurations. For exact current pricing, request a bulk quotation via WhatsApp or browse El-Buroj Wholesale Prices.

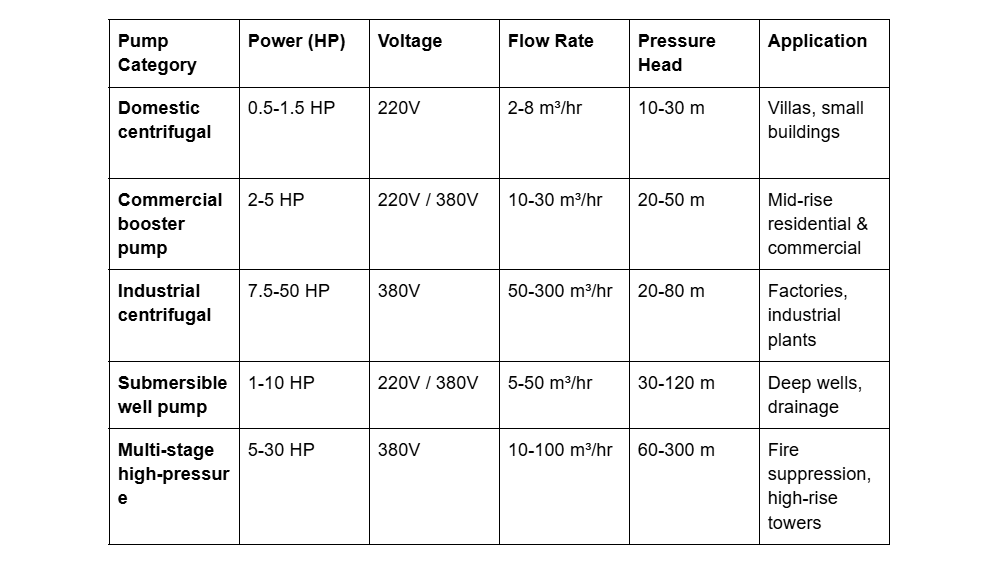

Technical Specifications by Pump Type

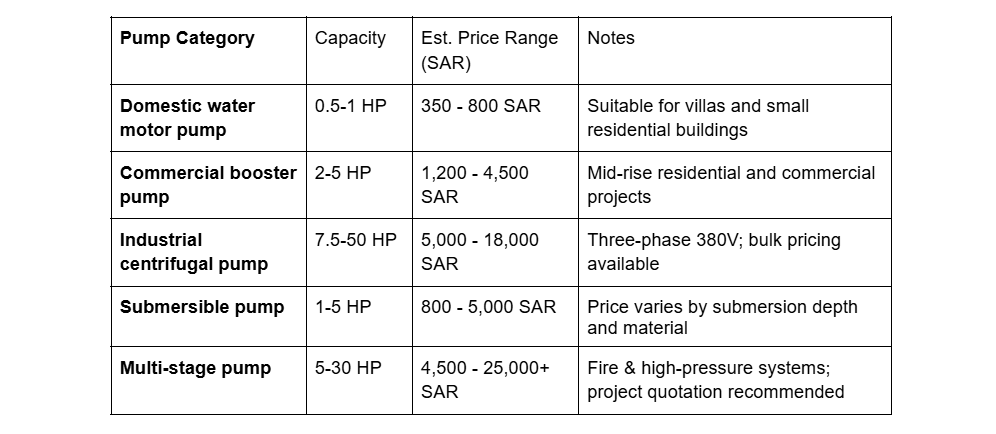

Estimated Price Ranges in Saudi Arabia
Domestic Water Motor Pumps (0.5–1 HP): * Price Range: 350 – 800 SAR.
Best For: Ideally suited for villas and small residential buildings.
Commercial Booster Pumps (2–5 HP): * Price Range: 1,200 – 4,500 SAR.
Best For: Designed for mid-rise residential complexes and commercial projects.
Industrial Centrifugal Pumps (7.5–50 HP): * Price Range: 5,000 – 18,000 SAR.
Specs: Operates on Three-phase 380V; Bulk pricing is available for large-scale orders.
Submersible Pumps (1–5 HP): * Price Range: 800 – 5,000 SAR.
Notes: Pricing varies significantly based on submersion depth and housing material.
Multi-Stage Pumps (5–30 HP): * Price Range: 4,500 – 25,000+ SAR.
Application: High-performance units for Fire & high-pressure systems. Project quotations are highly recommended for these specialized units.
Prices are indicative market estimates for 2026. Actual pricing depends on brand, specification, and order quantity. Contact El Buroj for current wholesale and project pricing.
Request a Quote from El Buroj - Wholesale Pricing | Bulk Supply | Fast Delivery Across KSA via:
Tel: 920031298
Why Source Your Water Motor Pump from El Buroj?
El Buroj is an established construction materials and MEP supplier serving contractors, engineers, and mega-project procurement teams across Saudi Arabia, with branches in Jeddah and Riyadh.
Complete MEP Supply Under One Roof
El Buroj supplies electrical systems (cables, circuit breakers, panels, transformers), plumbing products (pipes, fittings, water motor pumps), water heaters, and lighting and low-current solutions. Contractors eliminate fragmented sourcing across multiple vendors - reducing procurement lead time and coordination overhead on complex projects.
Wholesale and Bulk Pricing
Projects requiring multiple pump units benefit from El Buroj's wholesale pricing structure. Volume orders are supported with consolidated delivery, unified documentation, and dedicated account management. Contact El-Buroj for a project quotation.
Fast Delivery Across Saudi Arabia
El Buroj delivers water pumps and MEP materials nationwide, with stocked branches in Jeddah (Municipality Street, opposite Siemens) and Riyadh (Al-Arabi Street and Faisaliyah District). Same-city delivery timelines are aligned to active construction schedules.
Technical Support and Specification Assistance
El Buroj's technical team supports product specification, motor-pump matching, and compliance verification against Saudi Building Code requirements. Getting the specification right before procurement reduces costly substitutions and site delays.
See also: Best Wholesale Plumbing Materials Suppliers in Saudi Arabia.
One-Stop Strategic Sourcing Partner
For contractors managing multi-discipline project supply - pumps, electrical panels with Schneider or ABB components, cable, conduit, pipes, fittings, and lighting - El Buroj functions as a single strategic sourcing partner. One supplier relationship, one purchase order, coordinated delivery.
How to Choose the Right Water Motor Pump
Step 1: Define Flow Rate Requirements
Calculate total water demand in m³/hr or L/min based on the number of plumbing fixtures, floors, or irrigation zones. Undersizing produces chronic pressure drops; oversizing increases capital costs and energy waste. For buildings, Saudi plumbing codes provide demand unit tables as a calculation baseline.
Step 2: Calculate Total Dynamic Head (TDH)
TDH includes static height (vertical lift from source to delivery point), friction losses in pipes and fittings, and the minimum pressure required at the furthest outlet. For a 10-story building, TDH is typically 40-60 meters. For deep wells, TDH may exceed 100 meters. Use pump performance curves to confirm the duty point.
Step 3: Select the Correct Pump Type
Surface centrifugal pump: clean water, moderate head, accessible installation
Submersible: underground tanks, wells, drainage and dewatering
Booster: supplementing low mains pressure in high-rise and commercial buildings
Multi-stage: fire suppression, industrial processes, very high head requirements
Step 4: Match Motor Power (HP) and Voltage
For residential buildings: 0.5-2 HP for individual units; 3-7.5 HP for larger distribution systems. Industrial and irrigation applications may require 10-50 HP or higher. Confirm voltage supply: 220V (single-phase) for small domestic pumps; 380V (three-phase) for larger commercial and industrial units. Three-phase supply is more energy efficient for pumps above 3 HP.
Step 5: Specify for the Saudi Environment
Outdoor and coastal installations require corrosion-resistant stainless steel pump bodies and motors rated to a minimum of IP55. In areas with saline groundwater - particularly coastal zones around Jeddah - AISI 316 stainless steel wetted parts are mandatory. High ambient temperatures (up to 50°C outdoors) require motors with appropriate thermal class ratings.
Step 6: Plan Electrical Infrastructure
Confirm switchboard capacity and include motor protection devices - motor circuit breakers (MCBs), overload relays, and variable frequency drives (VFDs) for variable-speed applications - in the procurement scope. El Buroj can supply the complete electrical package alongside the pump, including Schneider and ABB panel components, eliminating separate sourcing.
Contact El Buroj for bulk project supply of water motor pumps and complete MEP materials.
Get Instant Pricing via: WhatsApp or
Phone: 920031298
FAQs
What is the difference between a water motor pump and a submersible pump?
A water motor pump is any pump driven by an electric motor. A submersible pump is a specific sub-type sealed in a waterproof housing to operate fully underwater inside a well, sump, or underground tank. All submersible pumps are motor pumps, but not all motor pumps are submersible.
How do I choose the right pump size for a building?
Calculate TDH (total dynamic head) in meters and required flow in m³/hr. Select a pump whose duty point falls in the middle third of the performance curve. For 5-10 floor buildings, a 1.5-3 HP booster pump typically handles domestic demand.
What HP is required for multi-floor building water supply?
A general guide: 0.5-1 HP for 1-3 floors at normal domestic flow; 1.5-3 HP for 4-8 floors; 5-7.5 HP for 9-15 floors. High-flow commercial applications require individual engineering calculations. A 20-25% safety margin above the calculated requirement is standard practice to accommodate demand peaks and system aging.
Are water motor pumps energy efficient in Saudi Arabia?
IE2/IE3-rated motors consume significantly less electricity than older IE1 motors. Adding a VFD (variable frequency drive) further reduces energy use by matching motor speed to real-time demand; important given that KSA buildings often run pumps 16–24 hours daily.
Are standard water pumps suitable for saline or hard water in Saudi Arabia?
Standard cast iron pump internals are not recommended for saline, brackish, or high-TDS water. For coastal areas such as Jeddah, or regions with high groundwater salinity, specify pumps with AISI 316 stainless steel wetted parts and corrosion-resistant shaft seals. El Buroj can advise on appropriate specifications for your site's water quality conditions.
Can El Buroj supply water pumps for large-scale construction projects across KSA?
Yes. El Buroj supplies water motor pumps in bulk quantities with wholesale pricing for contractors, developers, and project procurement teams. Fast delivery across Saudi Arabia is supported by stocked branches in Jeddah and Riyadh. Technical support for specification and compliance is available. Contact El Buroj for bulk project supply quotations on any pump type or MEP category.
