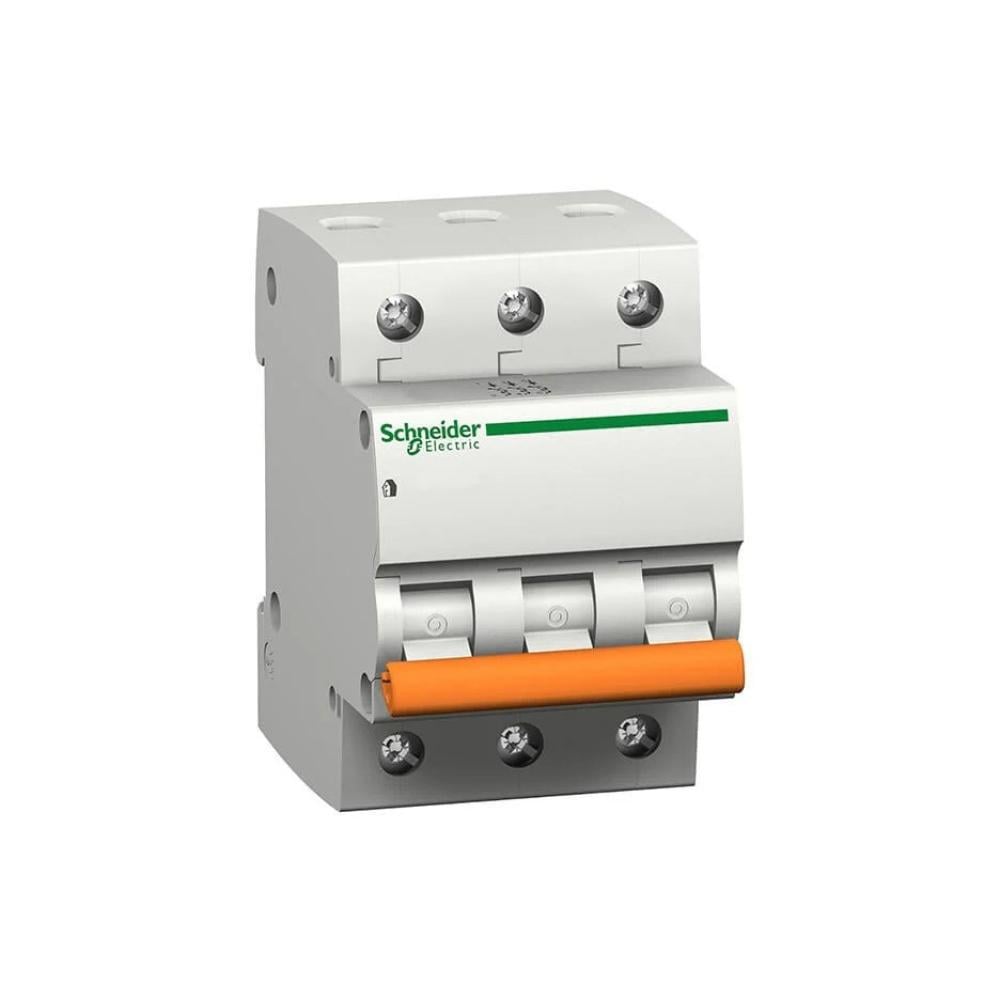

Schneider Sub Breaker - 3 Lines - 20 Amps - Domae 17081, C Curve

Product Specifications:

• Brand: Schneider Electric
• Product Type: Domae Miniature Circuit Breaker (MCB)
• Model Number: 17081
• Rated Current: 20A
• Number of Poles: 3P (Triple Pole)
• Breaking Capacity: 6000A
• Operating Temperature: -25°C to +60°C
• Mounting Method: Clip-on (DIN Rail)
• Control / Tripping Technology: Magnetic - Thermal
• Additional Detail: C Curve
• Product DataSheet: Click Here

Key Features:

• 3-pole circuit breaker with three protected poles, 20A rated current, and C tripping curve.
• Rated short-circuit breaking capacity (Icn) of 6000A at 400V AC, compliant with EN/IEC 60898-1 standard.
• Combines protection, control, and isolation functions in one compact device.
• Fault indication on the front panel through the handle position (O-I marking) for easy identification of tripped circuits.
• Electrical endurance: up to 10,000 operations.
• Mechanical endurance: up to 20,000 operations.
• Rated operational voltage (Ue): 400V AC.
• Frequency: 50/60 Hz.
• DIN rail mountable with a width of 6 modules (9mm each).
• Product color: White (RAL9003).
• Dimensions (W × H × D): 54 × 81 × 78.5 mm.
• Weight: 0.285 kg.
• Protection degree: IP20 standalone, IP40 when enclosed (IEC 60529).
• Storage temperature: -40°C to +70°C.

Applications:

• Protects electrical circuits against overload currents, preventing damage to wiring and connected devices.
• Residential use: Provides protection for sub-circuits such as room lighting, electrical outlets, and home appliances.
• Industrial power distribution systems: Safeguards machinery and equipment from electrical faults.
• Installed in distribution boards to protect each circuit individually, enhancing system safety and reducing the risk of faults.
