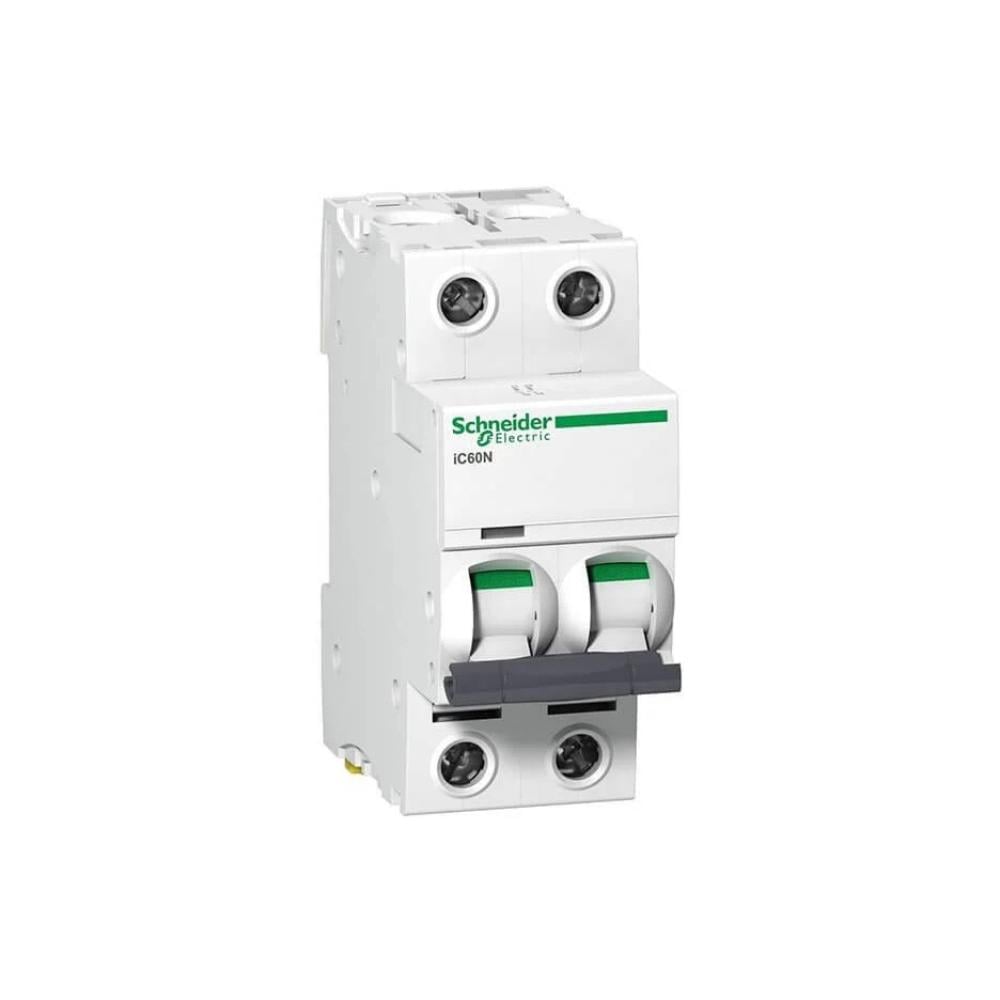

Schneider Sub Breaker - 2 Lines - 50 Amps - ACTI9 iC60N A9F44250,C Curve

Product Specifications:

• Brand: Schneider
• Product Type: ACTI9 iC60N Sub-Circuit Breaker
• Model Number: A9F44250
• Rated Current: 50 Amps
• Breaking Capacity: 10 kA
• Number of Poles: 2-Pole
• Operating Temperature: -35°C to +70°C
• Mounting Method: Clip-on (DIN Rail)
• Trip Unit Technology: Magnetic - Thermal
• Additional Detail: C Curve
• Dimensions: 36mm (W) x 85mm (H) x 78.5mm (D)
• Weight: 0.25 kg
• Color: White (RAL9003)
• Protection Rating: IP20, IP40 when installed in an enclosure
• Storage Temperature: -40°C to +85°C
• Pollution Degree: 3
• Product DataSheet: Click Here

Standards Compliance:

• EN/IEC 60898-1 (Industrial standard)
• EN/IEC 60947-2 (Residential standard)

Features:

• High Performance Protection:
• 2P breaker with two protected poles and a rated current of 50A.
• Short-circuit breaking capacity up to 20 kA at 220-240VAC and 6000A at 415VAC.
• VisiTrip Indicator: Quickly identifies faulty circuits, reducing maintenance time.
• VisiSafe Technology: Green strip confirms physical disconnection for safe servicing.
• Durable & Reliable:
• Electrical endurance up to 10,000 cycles.
• Mechanical endurance up to 20,000 cycles.
• Compact Design: Fits easily in panels with a width of 4 x 9mm modules.
• High Insulation Voltage: Rated Ui of 500VAC for enhanced safety.
• Quick Break Mechanism: Independent of manual operation, increasing service life.

Applications:

• Protects electrical circuits from overload currents and short circuits, preventing damage to wiring and connected devices.
• Ideal for use in distribution panels to safeguard individual circuits like room lighting, sockets, and household appliances.
• Suitable for industrial facilities to protect equipment and machinery from electrical faults.
• Enhances electrical system safety by isolating faulty circuits, reducing the risk of fires or major electrical failures.
• Perfect for residential, commercial, and light industrial environments.
