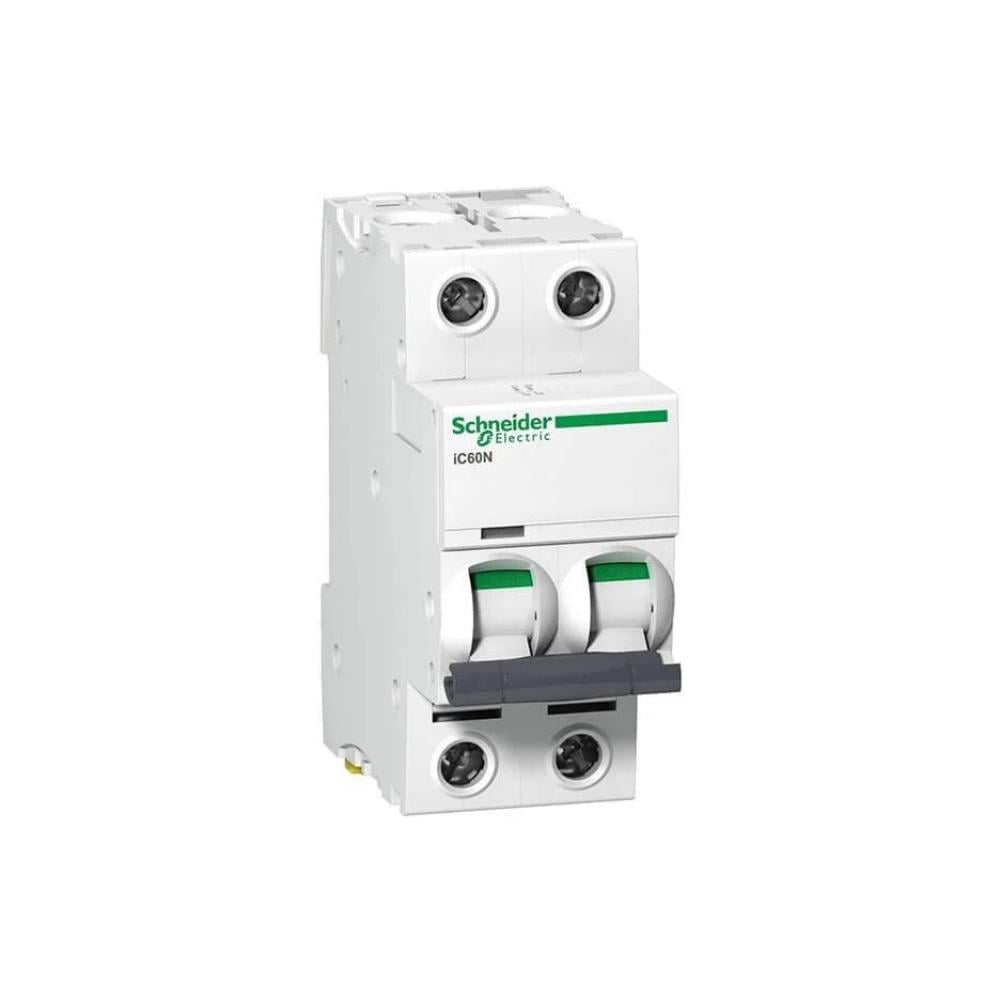

Schneider Sub Breaker - 2 Lines - 25 Amps - ACTI9 iC60N A9F44225, C Curve

Product Specifications:

• Brand: Schneider Electric
• Product Type: ACTI9 iC60N Miniature Circuit Breaker (MCB)
• Model Number: A9F44225
• Rated Current: 25A
• Number of Poles: 2P (Double Pole)
• Breaking Capacity: 10 kA
• Operating Temperature: -35°C to +70°C
• Mounting Method: Clip-on (DIN Rail)
• Control / Tripping Technology: Magnetic - Thermal
• Additional Detail: C Curve
• Product DataSheet: Click Here

Key Features:

• Low-voltage miniature circuit breaker (MCB) with two protected poles, 25A rated current, and C tripping curve.
• Rated short-circuit breaking capacity up to 20 kA at 220-240V AC (EN/IEC 60947-2) and 6000A at 415V AC (EN/IEC 60898-1).
• Compliant with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.
• Provides reliable protection against short circuits and overload currents.
• VisiTrip indicator minimizes troubleshooting time by clearly identifying faulty circuits.
• VisiSafe green strip ensures physical disconnection of contacts for safe maintenance.
• Independent quick-break mechanism improves product lifespan by operating separately from manual handling.
• Electrical endurance: 10,000 operations.
• Mechanical endurance: 20,000 operations.
• Rated insulation voltage (Ui): 500V AC.
• Limiting class 3 (EN/IEC 60898-1) for cost-effective downstream circuit protection.
• DIN rail mountable with a width of 4 modules (9mm each).
• Pollution degree: 3.
• Product color: White (RAL9003).
• Dimensions (W × H × D): 36 × 85 × 78.5 mm.
• Weight: 0.25 kg.
• Protection degree: IP20 standalone and IP40 when enclosed (IEC 60529).
• Storage temperature: -40°C to +85°C.

Applications:

• Residential electrical panels: Protecting sub-circuits such as room lighting, power outlets, and household appliances.
• Industrial electrical systems: Safeguarding circuits from electrical faults that could damage machines and equipment.
