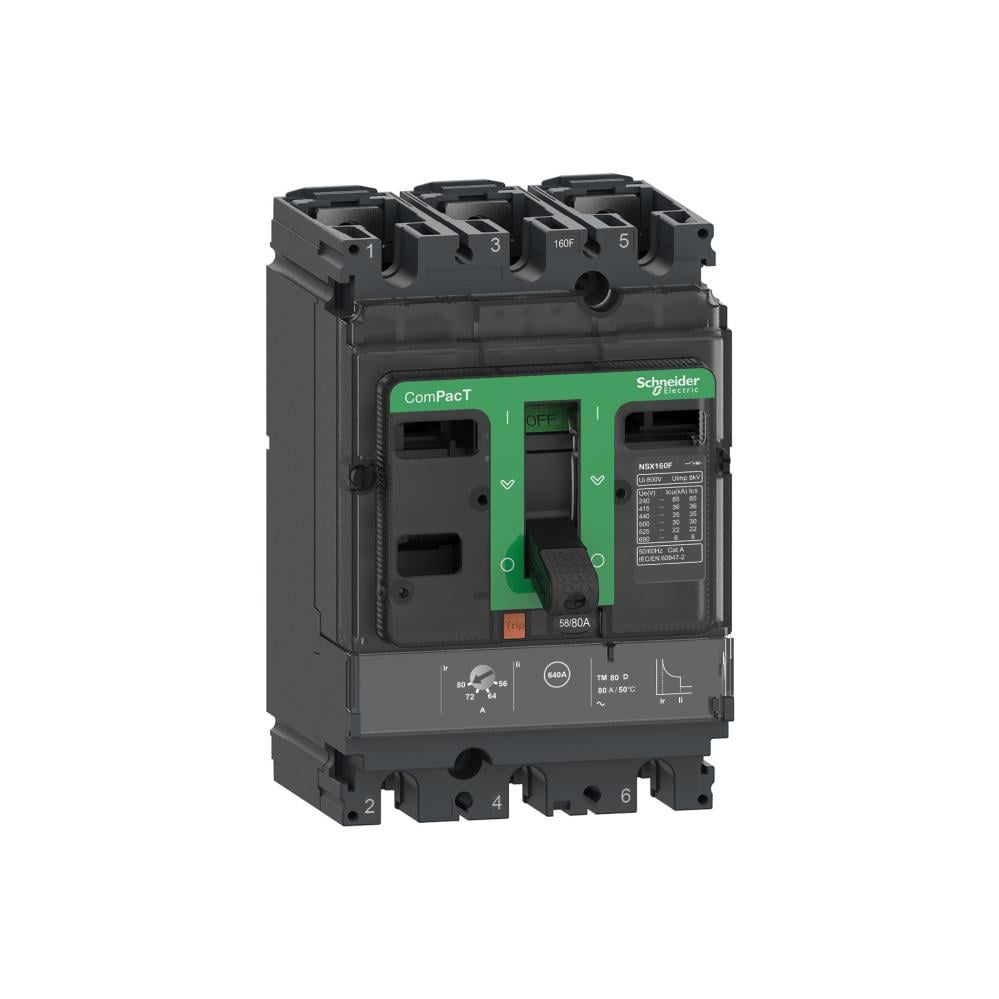

Schneider- Circuit breaker- 3P-80A-36kA- ComPacT- NSX100F- C10F3TM080C

Product Specifications:

• Brand: Schneider
• Product Type: Main Circuit Breaker ComPacT NSX100F
• Model Number: C10F3TM080C
• Current Rating: 80 Amps
• Voltage Rating: Up to 690 Volts
• Insulation Voltage: 800 Volts
• AC Current: 50/60 Hz
• Number of Poles: 3 Poles
• Protection Rating: IP40
• Mechanical Durability: 50000 Cycles
• Dimensions: 105 x 161 x 86 mm

Product DataSheet: Click Here

Product Features:

• Advanced Protection: Provides comprehensive protection against overcurrent and short circuits, safeguarding electrical equipment from damage.
• Robust and Durable Design: Engineered to withstand harsh conditions and heavy industrial use, ensuring a long lifespan.
• Easy Installation and Maintenance: Features a compact and easy-to-install design, with accessible parts for routine maintenance.
• Wide Compatibility: Compatible with a variety of industrial applications, including motor control, lighting, and HVAC systems.
• Advanced Technologies: Utilizes advanced technologies to ensure efficient and reliable performance.
• High Safety: Offers a high level of safety for operators and equipment.
• Flexible Configuration: Can be configured to meet various needs and applications.

Usage:

• Electrical Distribution Boards: Used as a main circuit breaker in electrical distribution boards to protect electrical circuits.
• Substations: Used in substations to protect electrical equipment.
• Commercial and Industrial Buildings: Used in commercial and industrial buildings to protect electrical systems.
• Major Projects: Used in major projects such as airports, ports, and factories.

FAQs

What is the maximum voltage rating of the Schneider ComPacT NSX100F Circuit Breaker?

The maximum voltage rating is 690 Volts.

Is the circuit breaker easy to install?

Yes, the circuit breaker features a compact and easy-to-install design, making it suitable for use in electrical distribution boards.

What type of protection does it offer?

It provides comprehensive protection against overcurrent and short circuits, safeguarding electrical equipment from damage.
