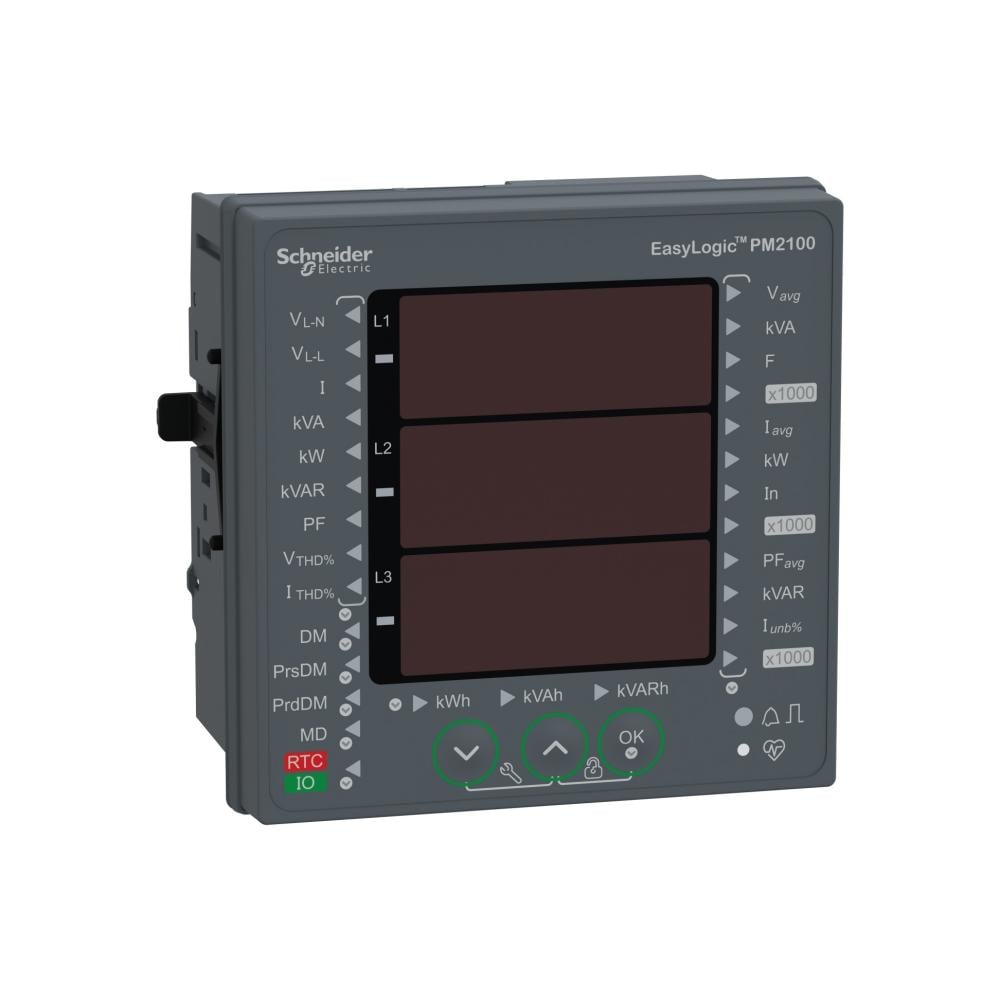

Schneider- Power & Energy Meter- EasyLogic -METSEPM2120

Specifications

Brand: Schneider

Product Type: Digital Power Meter

Model Number: METSEPM2120

Class: Class 1

Supply Voltage:

• 44-277V AC 45-65Hz +/- 10%
• 44-277V DC +/- 10%

Rated Current: 1A/A5

Maximum Power Consumption: 6VA at 277V/AC

Frequency: 45/65 Hz

Measurement Current Range: 5-6000 Amps

Size: 96x96 mm

Features

High Measurement Accuracy: Provides accurate readings for all electrical power parameters, including active power, reactive power, apparent power, and power factor, helping to improve energy efficiency.

Clear Display: Features a large and clear LED display for easy and clear reading of measurements.

Versatile Use: Can be used in a wide range of applications, including industrial, commercial, and residential settings.

Easy Installation and Operation: Simple design allows for easy installation and operation without the need for advanced technical skills.

Advanced Protection: Protects itself from electrical interferences and harsh environmental conditions.

Wide Compatibility: Compatible with a wide range of industrial control systems.

Advanced Measurements: Capable of measuring total harmonic distortion for both current and voltage, aiding in power quality analysis.

Usage

Energy Consumption Monitoring: Can be used to monitor energy consumption in various devices and equipment, helping to identify areas that need energy efficiency improvement.

Power Quality Analysis: Helps analyze power quality and identify potential issues such as harmonics and electrical disturbances.

Cost Control: Can be used to determine costs associated with energy consumption, helping to reduce expenses.

Advanced Systems: Can be integrated into advanced control systems for greater automation in energy management.

FAQs

How does the METSEPM2120 Digital Power Meter ensure accurate measurements?

The METSEPM2120 Digital Power Meter provides accurate measurements by using high-precision sensors and advanced technology to measure all electrical power parameters, including active, reactive, and apparent power.

Is the METSEPM2120 suitable for industrial applications?

Yes, the METSEPM2120 is suitable for a wide range of applications, including industrial, commercial, and residential settings, thanks to its high accuracy and advanced protection features.

Can the METSEPM2120 be easily installed and maintained?

Yes, the METSEPM2120 features a simple design that allows for easy installation and operation without the need for advanced technical skills.

What applications is the METSEPM2120 compatible with?

The METSEPM2120 is compatible with various applications, including energy consumption monitoring, power quality analysis, cost control, and integration into advanced control systems.
